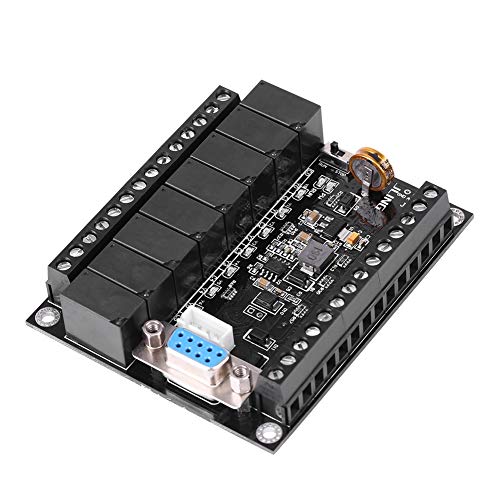

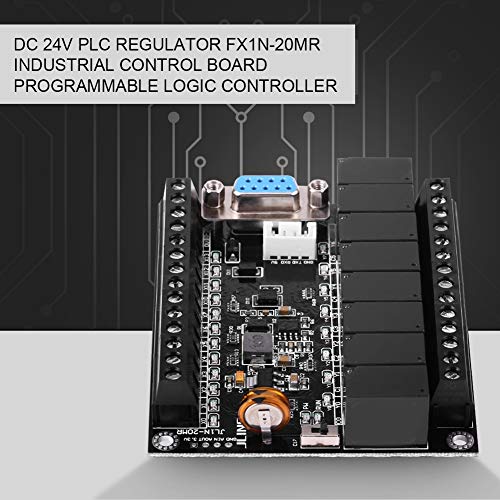

PLC Controller Kit DC 24V FX1N 20MR 9600 Baud Rate 32 Bit MCU Programmable Logic Controllers Supports for GX Developer GX Work2

Specifications: Model: FX1N-20mr Working Voltage: DC24（V） Wide Power Supply Voltage: 10-28VDC Baud Rate: 9600 Programming Software: for GX-Developer, for GX-work2. Size: Approx. 86 x 73 x 20mm / 3.4 x 2.9 x 0.7inch Weight: 120G Package Included: 1 x PLC Board Module function: Some of the common features are shown as follows: Turn on the power supply, the relay 1 is closed for N seconds and then disconnect the relay 2 for N seconds. When the power supply is turned on, the relay 1 is switched off after N seconds, and then the relay 2 is closed for N seconds and then is turned off. Can be connected to the NPN sensor , the sensor programming, to achieve arbitrary control of the relay. When the 1 is triggered, the relay 1 is controlled, and when the 2 is triggered, the relay 2 is controlled. Turn on the power supply, the control motor is turning N seconds, and then reverse N seconds, followed by the cycle. When the 1 has a , the motor is controlled to rotate; when the 2 has a , the motor is reversed. These are just some examples, modules can achieve far these functions Input high speed pulse C235, C251 and FX1N compatible. Output relay 1A output, Rated current 5A, can directly drive DC solenoid valve, AC solenoid valve, AC contactor, AC motor, etc,.

• Programmable Control: This module is programmable and can achieve thousands of functions with It is equipped with a built-in watchdog timer circuit to ensure compatibility with high-speed pulses C235, C251, and FX1N during long-term of the module
• Scope of application: Output relay 1A output, rated current 5A, can directly drive DC solenoid valves, AC solenoid valves, AC contactors, AC motors, etc
• Built in analog input and output: Built in analog input AD, corresponding to internal data register D5030. (Not D8030) Built in analog output DA, corresponding to external data register D5101
• PLC with two programming ports: TTL interface and 232 interface. 232 interface, can directly use USB-232 serial port to download programs directly from the computer. When the PLC requires connection or text, it can be connected using the 232 programming port
• Purchase confidence: Make you feel like you're using it, so you have a better user experience. Value for money. If you have any questions, please feel to us at any time. Our team will assist you in resolving the issue as soon as possible
